DELTA-100

3D-Full HD SVM - AUTO360

Surround View Monitoring System

ECU·Camera·Monitor로 구성된 차량 360° 영상 통합 솔루션입니다.
군용 차량, 트레일러, 트램 등 글로벌 운송 분야에서
안전성과 운용성을 강화하는 핵심 기술로 활용되고 있습니다.

100% 대한민국
자체 개발 기술

타사는 중국 기술 기반으로 제조

3D
영상

주변 시야를 폭 넓게 확인 가능

FULL HD
고화질

1920 X 1080p

초당 30프레임
/ 30 fps

시속150km 주행 시도 끊김 없는 영상

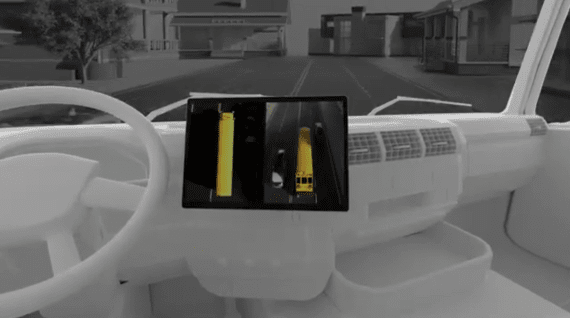

상업차량 SVM

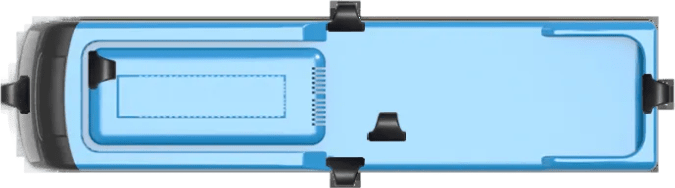

Camera Position

Max 8ch(3ch~6ch Calibration)

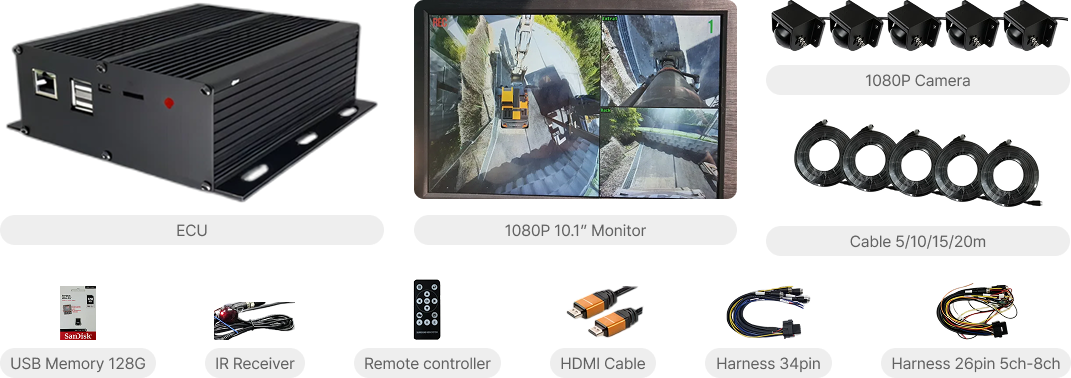

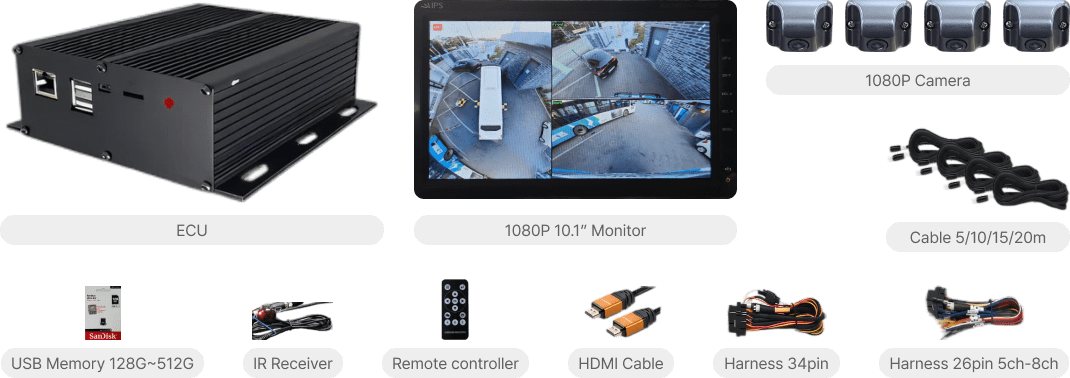

SVM Product set

System Configuration

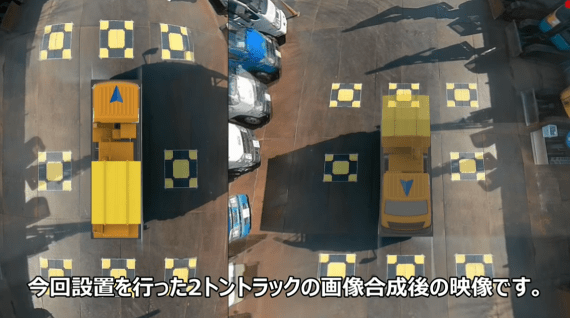

SVM Calibration

상업차량 Spec

ECU Spec.USB Recoding

Items	Specification	Items	Specification
Typical Supply Voltage	DC 12V~24V	Video Input	AHD (1080P, 30fps, 3ch-8ch)
Operating Voltage Range	DC 11V ~ 36V	Video Output	Resolution 1080P 30fps (AHD, HDMI, NTSC/PAL)
Power Consumption	Max 28W (Including 6 cameras)	Operating Temp. Range	-30 ~ +75°C
Size	(W)155 X (H)168 X (D)50	Storage Temp. Range	-40 ~ +85°C

Camera Spec.AVC-3027

Items	Specification	Items	Specification
Input Signal	Full HD(1080P) x 30 fps	Operating Temperature	-30 ~ + 80
Output Signal	AHD, TVI, CVBS	Min. illumination	0.001 Lux, Low Lighted
Current Consumption	Max 2.2W/24V	Including Bracket Size	45W X42H X 60L
Operating Voltage	DC 5V~12V	Certification	RoHS, KC, CE, FCC, E-Mark

Monitor Spec.10.1” HDMI (MT-101HDS)

Items	Specification	Items	Specification
Typical Supply Voltage	DC12V~24V	Display resolution	LED (1024*600)WVGA
current consumption	24V, 300mA	Size	249(W) X 155.5(H) X 19.5(D)mm
Input Signal	CVBS / HDMI	Weight	540g
Video Input	1Vp-p, 75ohm	Operating Temp. Range	-10°C~60°C

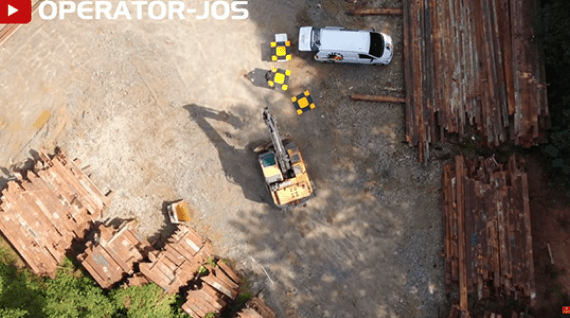

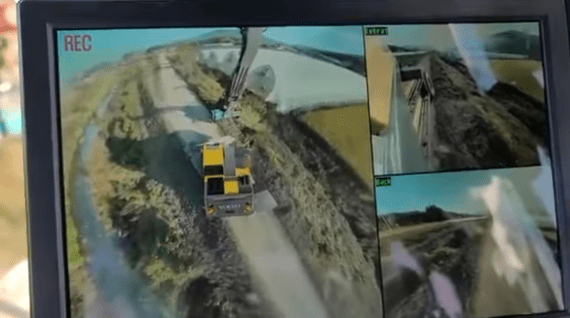

중장비 SVM

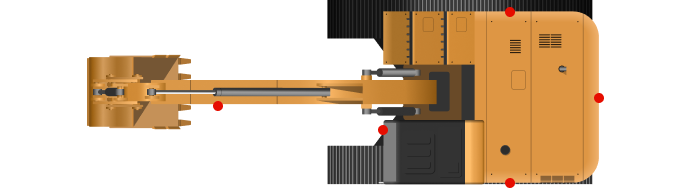

Camera Position

Max 8ch(3ch~6ch Calibration)

SVM Product set

중장비 Spec

ECU Spec.USB Recoding

Items	Specification	Items	Specification
Typical Supply Voltage	DC 12V~24V	Video Input	AHD (1080P, 30fps, 3ch-8ch)
Operating Voltage Range	DC 11V ~ 36V	Video Output	Resolution 1080P 30fps (AHD, HDMI, NTSC/PAL)
Power Consumption	Max 28W (Including 6 cameras)	Operating Temp. Range	-30 ~ +75°C
Size	(W)155 X (H)168 X (D)50	Storage Temp. Range	-40 ~ +85°C

Camera Spec.AVC-3024

Items	Specification	Items	Specification
Input Signal	Full HD(1080P) x 30 fps	Operating Temperature	-30 ~ + 80
Output Signal	AHD, TVI, CVBS	Min. illumination	0.001 Lux, Low Lighted
Current Consumption	Max 2.2W/24V	Including Bracket Size	84W X59H X 52L
Operating Voltage	DC 5V~12V	Certification	RoHS, KC, CE, FCC, E-Mark

Monitor Spec.10.1” HDMI

Items	Specification	Items	Specification
Typical Supply Voltage	DC12V~24V	Display resolution	LED (1920*1080)WVGA
current consumption	12V~24V, 300mA	Size	250(W) X 150(H) X 19.0(D)mm
Input Signal	HDMI	Weight	500g
Video Input	1Vp-p, 75ohm	Operating Temp. Range	-10°C~60°C
